What Is the Difference Between Red Light Therapy and Infrared?

Reviewed By: CANTOPLED Technology R&D Engineering Team

Red Light Therapy vs. Infrared: What’s the Difference and Which Do You Need?

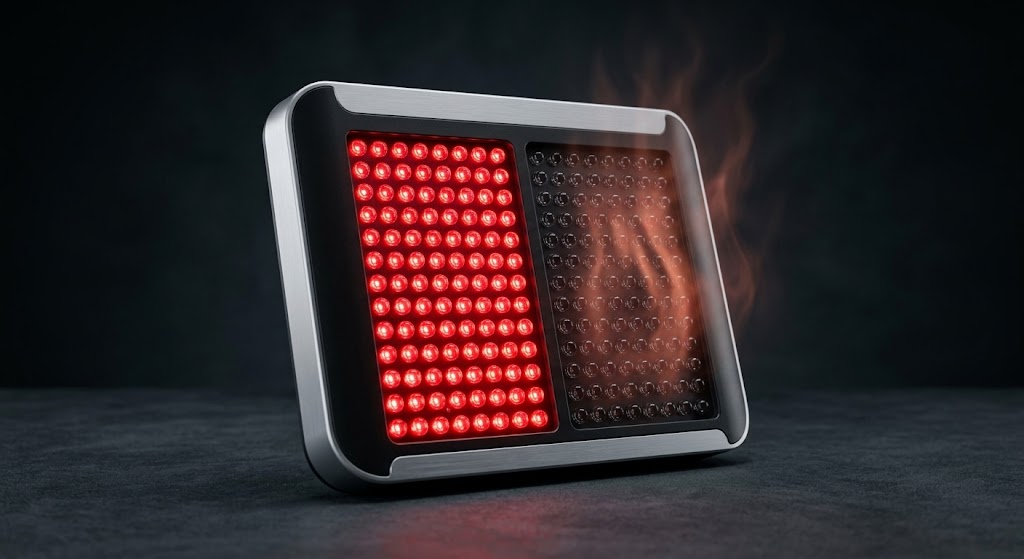

Modern LED therapy panel emitting red and near-infrared light for dual-wavelength treatment
Figure 1: Red (620–700 nm) and near-infrared (780–850 nm) light are different parts of the same photobiomodulation family — and most modern devices combine both for surface and deep-tissue coverage[1].
30-Second Summary:

Red light (620–700 nm) is visible, penetrates 1–6 mm, and targets the epidermis and dermis for collagen, fine lines, and surface healing[2]. Near-infrared (780–850 nm) is invisible, penetrates several centimeters, and reaches muscle, joints, and deep tissue for inflammation and pain relief[1][4]. They are complementary, not competing — which is why dual-wavelength devices dominate professional and consumer lines alike.

Table of Contents


1. Red Light Therapy: The Skin Specialist

Red light therapy uses visible red wavelengths, typically 620–700 nm. This light penetrates the skin roughly 1–6 millimeters, targeting the epidermis and dermis — exactly where collagen, elastin, and pigment-related structures live. At the cellular level, red photons are absorbed by mitochondrial chromophores (notably cytochrome c oxidase), which boosts ATP production and triggers the repair-and-regeneration cascade known as photobiomodulation[2][3]. Clinically, red light is studied primarily for:

  • Collagen and elastin production — the structural proteins behind firm, resilient skin[2]
  • Skin tone improvement and reduction of wrinkles, fine lines, acne, and scars[2]
  • Surface-level wound healing and post-procedure recovery[3]

In short: if your goal is anti-aging, skin rejuvenation, and surface healing, red light is the wavelength your skin can actually “use.”


2. Infrared (Near-Infrared): The Deep-Tissue Worker

“Infrared therapy” in the context of light-emitting devices refers specifically to near-infrared (NIR) light — typically 780–850 nm for therapeutic devices. NIR is invisible to the human eye and penetrates far deeper — several centimeters — reaching muscles, joints, tendons, and connective tissue[1]. It is most effective for:

  • Reducing inflammation at the tissue level[1][4]
  • Relieving deep muscle and joint pain — a 2009 meta-analysis of 16 RCTs found NIR therapy significantly reduced chronic neck pain[5]
  • Enhancing muscle recovery and reducing exercise-induced soreness[6]
  • Supporting joint and deeper-tissue health[1]

Because of its deeper penetration, infrared is the go-to for pain relief, inflammation reduction, and deep-tissue healing.


3. The Physics: Wavelength, Depth, and What “Infrared” Really Means

A common confusion: “infrared” is not one thing. The infrared band spans roughly 780 nm to 1 mm and is subdivided by international standards (ISO 20473) into near-infrared (NIR), mid-infrared (MIR), and far-infrared (FIR)[4]. Only near-infrared behaves like red light — non-thermal, photon-driven photobiomodulation. Mid- and far-infrared are perceived as heat (think infrared saunas) and act through entirely different mechanisms[4].

This is why device specifications matter more than marketing labels. A panel that says “infrared” could mean 850 nm LEDs (therapeutic NIR) — or a heating element (thermal IR). Wavelength, irradiance, and optical design determine what the light actually does in tissue[4].

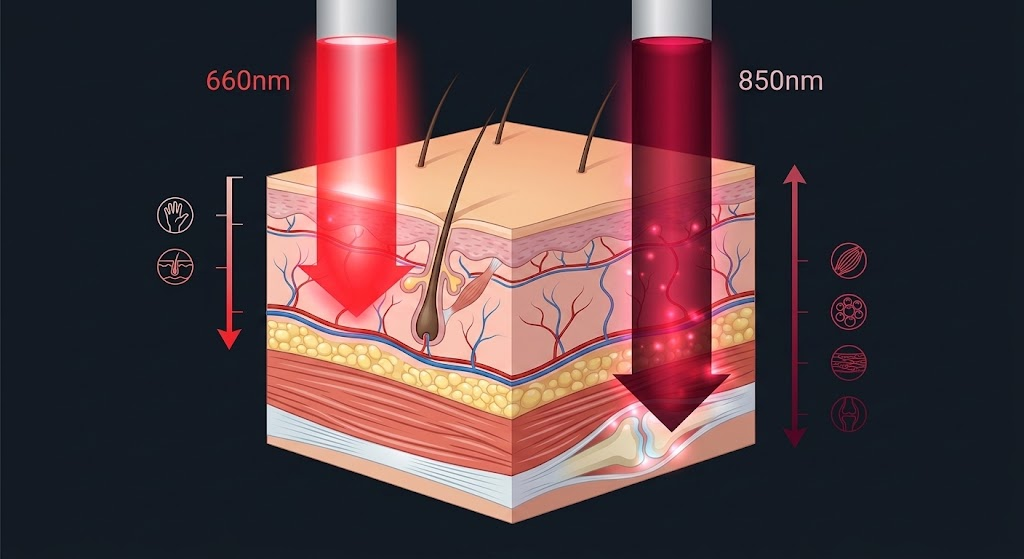

Cross-section showing red light penetrating to dermis and near-infrared penetrating to muscle and joints
Figure 2: Red light is absorbed in the epidermis and dermis; near-infrared continues into muscle and joint tissue. Deeper is not “better” — it is different, and each wavelength serves the tissue it can reach[1].

4. Quick Comparison Table

Feature Red Light Therapy Near-Infrared Therapy
Wavelength 620–700 nm (visible red) 780–850 nm (invisible)
Penetration Depth 1–6 mm (epidermis + dermis) Up to several cm (muscle, joints, deep tissue)
Best For Skin rejuvenation, anti-aging, surface healing[2] Pain relief, inflammation, muscle recovery[5][6]
Common Benefits Collagen boost, even tone, scar healing Deep-tissue healing, joint support, recovery
Visibility Visible red glow Invisible to the eye

5. Can You Use Both Together?

Yes — and this is precisely why dual-wavelength (red + NIR) devices are the industry standard. In a single session, red light treats surface skin while near-infrared reaches deeper structures: skin concerns and muscular or joint issues addressed at once[1][3]. For masks, red-dominant panels keep the treatment skin-focused; for full-body panels, alternating or simultaneous red + NIR is common. Both are non-invasive and generally well tolerated when used as directed[2].

Practical detail: red and NIR LEDs emit at different voltages and require separate driver circuits — a genuine engineering consideration in device design. A cheap “dual-wavelength” device may under-drive one band. Specifications tell the truth: check the exact wavelength and irradiance per band.


6. Which One Do You Need?

  • Skin-first goals (wrinkles, tone, glow): choose red-dominant devices. See our guide on red light therapy benefits for skin and whether red light masks actually work.
  • Pain, inflammation, recovery: near-infrared is the deeper worker — explored in depth in our red light therapy panels guide.
  • Both skin and body: a dual-wavelength panel or mask covers the full spectrum. We break down the choice in our mask vs. panel comparison and the manufacturing cost breakdown.

And before you buy: read the science of wavelengths and how often to use a red light mask — parameters determine outcomes.


7. Partner With CANTOPLED Technology for Custom LED Devices

The red-vs-infrared distinction is an engineering problem before it is a marketing one: dual-band driver circuits, wavelength tolerance, and irradiance calibration are exactly what CANTOPLED Technology’s Shenzhen R&D team builds every day. As an ISO 13485, CE, and FDA-compliant LED device manufacturer, we support:

  • Custom red / NIR / dual-wavelength spectrum design with verified per-band irradiance.
  • ODM/OEM production of masks, panels, and full-body devices — from prototyping to mass production.
  • Full regulatory documentation (ISO 13485, CE, FDA 510(k) support) for your market entry.

Building a device brand? Visit our OEM/ODM Manufacturing Page or request your custom quote today.


8. References & External Links


[1] Tsai SR, Hamblin MR. Biological Effects and Medical Applications of Infrared Radiation. J Photochem Photobiol B. 2017;170:197-207.


[2] Jagdeo J, et al. Light-Emitting Diodes in Dermatology: A Systematic Review of Randomized Controlled Trials. Lasers Surg Med. 2018.


[3] Hamblin MR. Mechanisms and Mitochondrial Redox Signaling in Photobiomodulation. Photochem Photobiol. 2018.


[4] Vatansever F, Hamblin MR. Far Infrared Radiation (FIR): Its Biological Effects and Medical Applications. Photonics Lasers Med. 2012;1(4):255-266.


[5] Chow RT, et al. Efficacy of Low-Level Laser Therapy in the Management of Neck Pain: A Systematic Review and Meta-Analysis. Lancet. 2009;374(9705):1897-908.


[6] Ferraresi C, et al. Photobiomodulation in Human Muscle Tissue: An Advantage in Sports Performance? J Biophotonics. 2016;9(11-12):1273-1299.


[7] International Organization for Standardization. ISO 13485:2016 Medical Devices — Quality Management Systems.
