How to Use 7 Color LED Mask for Radiant, Healthy Skin

Reviewed By: CANTOPLED Technology R&D Engineering Team

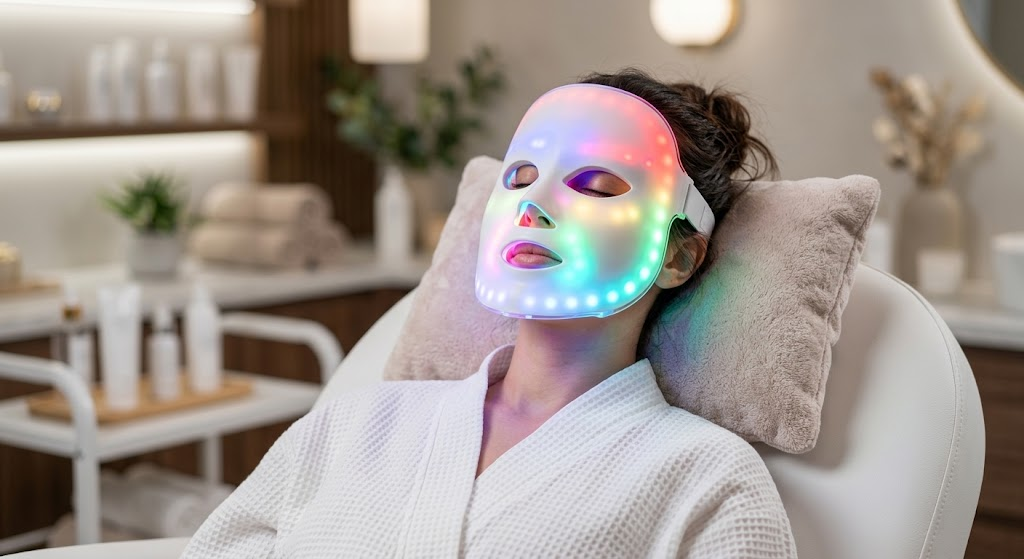

Woman wearing a 7-color LED light therapy face mask glowing with multiple wavelengths
Figure 1: Seven colors sound impressive — but only four are distinct therapeutic wavelengths. The rest are combinations. Knowing which is which changes how you use the mask[1].
30-Second Summary:

A “7 color” LED mask typically contains four real therapeutic wavelengths — red (~630 nm, collagen), blue (~415 nm, acne bacteria), green (~520 nm, pigmentation), and yellow (~590 nm, erythema and dullness)[2][3] — plus combination modes (purple = red + blue, cyan = green + blue, white = full spectrum). Use it on clean, dry skin for 15–20 minutes, 3–5 times per week, and check the exact wavelength spec before you buy.

Table of Contents


1. The 7 Colors, Decoded: Real Wavelengths vs. Combinations

Here is the honest engineering view: among the seven colors on a typical multi-color mask, only four are distinct therapeutic wavelengths with a clinical evidence base. The other three are combination modes — they turn on two or more LED colors at once. Knowing the difference is the single most useful thing when choosing modes:

Mode Type What It Does Evidence
Red (~620–650 nm) True wavelength Collagen stimulation, fine lines, firmness, surface healing Strong — multiple RCTs[2]
Blue (~415 nm) True wavelength Kills acne-causing C. acnes via endogenous porphyrins; calms inflamed skin Strong — RCTs + meta-analysis[3]
Green (~520 nm) True wavelength Pigmentation and tone-related signaling (mechanism still debated) Emerging — see our green light guide[4]
Yellow (~590 nm) True wavelength Erythema reduction, dullness, photoaging (clinical experience in 900+ patients) Moderate[5]
Purple Combination (red + blue) Combines collagen + acne-bacteria modes in one session Inferred from components
Cyan Combination (green + blue) Tone + calming combination mode Inferred from components
White Combination (full spectrum) All wavelengths on; general maintenance mode Inferred from components

Why this matters: if a mask says “blue 470 nm” for acne, that is outside the optimal 400–420 nm range used in acne trials — it may still be pleasant to look at, but it is not the wavelength the evidence supports[3]. Always check the exact nanometers, not the color name.


2. How to Use a 7 Color LED Mask: Step-by-Step

  1. Cleanse and dry your face. Light penetrates best through clean, dry skin — and product residue can scatter or block photons. See what to put on your face before LED therapy for the details.
  2. Power on. Press and hold the power button for 1.5–3 seconds (model-dependent).
  3. Select your mode by skin concern (see the table above): red for aging, blue for acne, green/yellow for tone, purple/white for combined maintenance.
  4. Wear for 15–20 minutes. The clinical protocols behind LED therapy typically run 10–20 minutes per session; frequency matters more than marathon sessions[2]. Aim for 3–5 sessions per week, and read how often to use a red light mask for the frequency science.
  5. Power off and store. Hold the button to turn off, wipe the interior gently with a dry cloth, and store in a cool, dry place. Never use the mask while charging.

Results are cumulative: most clinical protocols show measurable changes over 8–12 weeks of consistent use, not after one session[2].


3. Benefits, Matched to Wavelength

Claimed Benefit Wavelength Evidence Note
Fine lines and wrinkles Red (620–650 nm) Supported by RCTs on facial rhytides and collagen[2]
Texture and tone Red + green Red for remodeling, green for pigment signaling[4]
Inflammation and redness Yellow (590 nm) + red Yellow reduces post-procedure erythema; red/NIR reduce inflammation[5][6]
Acne bacteria Blue (415 nm) Strong RCT + meta-analysis support[3]
Elasticity and firmness Red + NIR Collagen and elastin support via photobiomodulation[6]
Dull, tired skin Yellow (590 nm) Clinical experience in photoaging (900+ patients)[5]

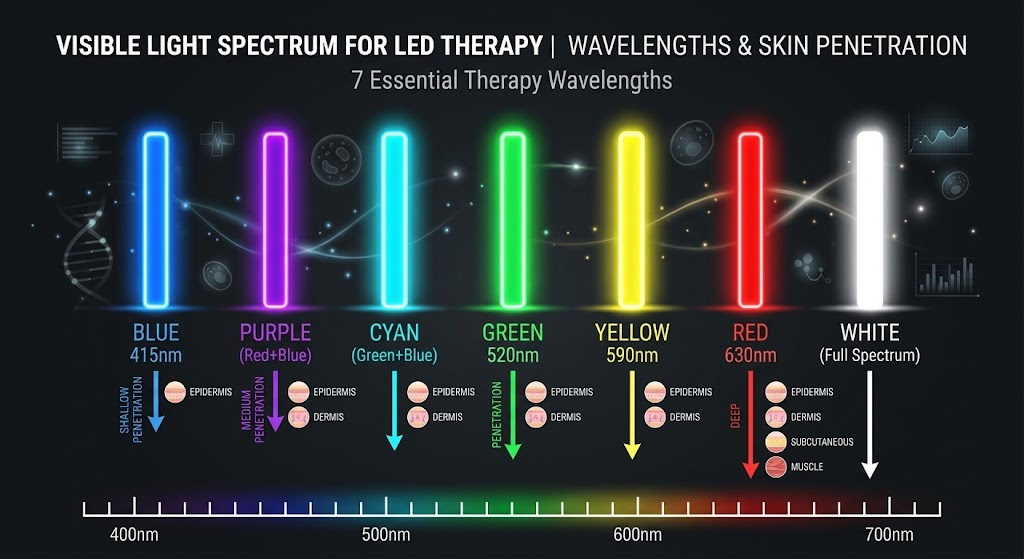

Spectrum chart of the seven LED mask colors with their wavelengths and skin targets
Figure 2: Four base wavelengths plus three combination modes — check the nm spec, not just the color name[1].

4. Pro Tips for Better Results

  • Don’t chase all 7 modes every session. Match the mode to today’s concern. Red for anti-aging days, blue for breakout days, yellow after procedures or for dullness.
  • Serums before or after? Water-based serums before the session are fine; avoid thick occlusive creams that scatter light. For a deeper dive, our guide on pre-LED skincare covers the science.
  • Consistency beats intensity. 15 minutes × 4 days/week outperforms 60 minutes once a week in clinical protocols[2].
  • Protect your eyes. Keep eyes closed under the mask; most masks include eye shields — use them.
  • Follow the manual. Charging safety, session limits, and cleaning instructions exist for a reason — device longevity depends on them.

5. Before You Buy: The Spec Sheet Test

Multi-wavelength masks are the most spec-inflated category in LED devices. Before paying for “7 colors,” ask three questions:

  • Does the spec sheet list exact nm per color? “Red, blue, green, yellow” with no numbers is a red flag. You want 620–650 nm red, 400–420 nm blue, 515–525 nm green, ~590 nm yellow.
  • Is irradiance published? Dose = irradiance × time. Without mW/cm² numbers you cannot compare devices — see our LED device cost and spec comparison for what separates tiers.
  • Who makes it, and under what quality system? CE/FDA registration and an ISO 13485 manufacturer are the baseline for a device that will sit on your face 4× a week[7].

For mask vs. panel coverage trade-offs, see mask vs. panel; for the underlying science of wavelengths, the science of red light wavelengths.


6. Partner With CANTOPLED Technology for Custom LED Devices

A true multi-wavelength mask is an electronics problem before it is a marketing story: independent driver channels per color, wavelength tolerance control (typically ±5–10 nm), per-band irradiance calibration, and photobiological safety. That is what CANTOPLED Technology’s Shenzhen R&D team does daily. As an ISO 13485, CE, and FDA-compliant LED device manufacturer, we support:

  • Custom multi-wavelength mask and panel designs with specified nm and verified per-band irradiance.
  • ODM/OEM production from prototyping to mass production, including private label.
  • Full regulatory documentation (ISO 13485, CE, FDA 510(k) support) for your market entry.

Launching a light therapy device brand? Visit our OEM/ODM Manufacturing Page or request your custom quote today.


7. References & External Links


[1] Tsai SR, Hamblin MR. Biological Effects and Medical Applications of Infrared Radiation. J Photochem Photobiol B. 2017;170:197-207.


[2] Jagdeo J, et al. Light-Emitting Diodes in Dermatology: A Systematic Review of Randomized Controlled Trials. Lasers Surg Med. 2018.


[3] Scott AM, et al. Blue Light Therapy for Acne Vulgaris: A Systematic Review and Meta-Analysis. (2019).


[4] Serrage HJ, et al. Differential Effects of Blue and Green Light in Photobiomodulation. (2019).


[5] Opel DR, et al. Light-Emitting Diodes: A Brief Review and Clinical Experience. J Clin Aesthet Dermatol. 2015;8(6):36-44.


[6] Hamblin MR. Mechanisms and Mitochondrial Redox Signaling in Photobiomodulation. Photochem Photobiol. 2018.


[7] International Organization for Standardization. ISO 13485:2016 Medical Devices — Quality Management Systems.
